Link arm 1-leaf

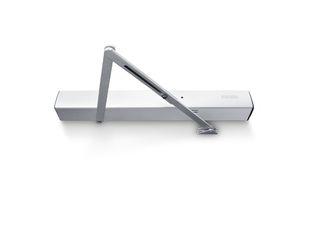

TS 4000 R * Overhead door closer with link arm with electric hold-open device and smoke switch

Door closer TS 4000 R Overhead door closer with electrohydraulic hold-open unit according to EN 1155, closing force size 1-6, with integrated smoke switch
  • Closing force EN1-6 with variable adjustment
  • Operating voltage 230 V AC
  • Can be used for right and left hand doors without conversion
  • Integrated smoke switch control unit, whose signal closes the door automatically in the event of a fire
  • Smoke switch with contamination indicator and adaption of the alarm threshold
  • Additional smoke detectors can be fitted
Show more
  • Electric hold-open device in accordance with EN 1155 suitable for hold-open systems
  • Electric hold-open device with hold-open area 80°-175°
  • Mechanical latching action which accelerates the door shortly before the closed position
  • Closing speed can be individually adjusted
  • Visual closing force display for easy control of the setting
  • All functions can be set from the front (except for latching action)
Contact us

Application Areas

  • Fire and smoke protection doors
  • Right and left single-action doors
  • Single-action doors up to 1400 mm leaf width

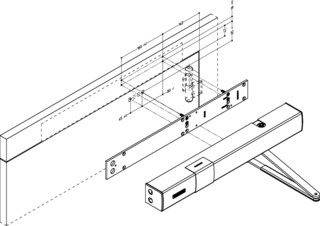

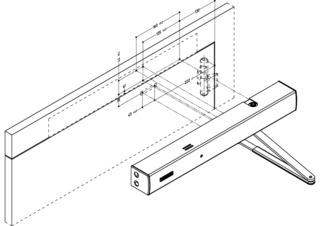

  • Transom installation opposite hinge side
  • Hold-open systems with integrated hold-open device

Technical data

TS 4000 R
Closing force in accordance with EN 1154 EN 1 - 6
Barrier-free in accordance with DIN 18040 up to leaf width (max.) in mm 1400 mm
Leaf width (max.) 1400 mm

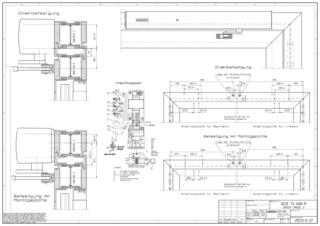

Type of installation Transom installation opposite hinge side
Opening angle (max.) 180 °
Input voltage 230 V AC
Suitability for fire protection doors Yes
Closing force adjustable Yes, stepless
Adjustable closing speed Yes
Latching action adjustable Yes, via link arm
Position of closing force adjustment Front
Visual closing force display Yes
Hold-open function Electrical
Hold-open range 80 ° - 175 °
Smoke switch integrated Yes
