Push button

AS 500 Manual trigger switch for the manual release of electrically controlled hold-open devices

  • IP rating IP40
  • Including terminating resistor for line monitoring
Contact us

AS 500

Manual trigger switch for the manual release of electrically controlled hold-open devices

Application Areas

  • Hold-open systems for manual release of the hold-open device
  • Installation in the direct vicinity of the end plate

Installation situations in reference objects and videos

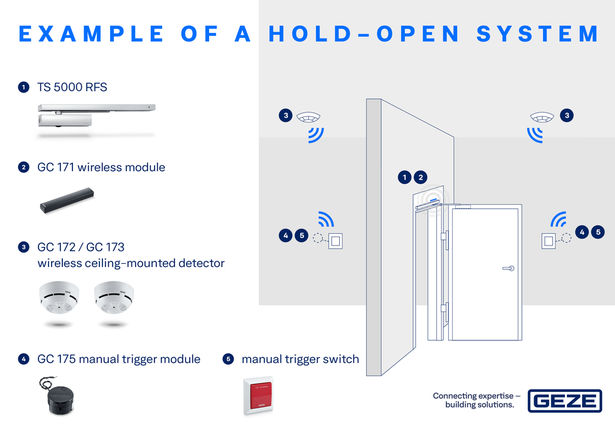

FA GC 170 - Example of a hold-open system The new GEZE wireless kit allows you to connect the ceiling-mounted detectors and manual trigger switch to the lintel-mounted detector on all GEZE hold-open systems wirelessly. It's easy to retrofit because it eliminates the need for separate cable routing. This makes planning much easier, in particular in listed buildings.

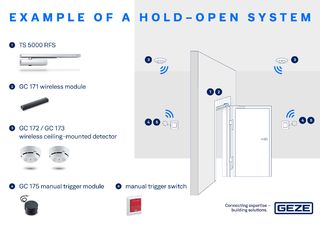

FA GC 170 - Example of a hold-open system

The new GEZE wireless kit allows you to connect the ceiling-mounted detectors and manual trigger switch to the lintel-mounted detector on all GEZE hold-open systems wirelessly. It's easy to retrofit because it eliminates the need for separate cable routing. This makes planning much easier, in particular in listed buildings. © GEZE GmbH

Technical data

AS 500
IP rating IP20
Type of installation Surface-mounted installation, Flush-mounted installation
