F 1200
F 1200 basic hardware * Cranked turn-and-tilt hardware for manual ventilation of rooms and staircases
- Ventilation with variable adjustment – from gap ventilation to the tilted end position
- Functional safety due to weight-independent crank handle activation with control display
- Additional protection against incorrect operation and overload friction coupling
- Secure locking due to the arrangement of virtually any number of bolt positions on all four sides
- All fitting parts are positioned on the inner leaf shell
Application Areas
- Ventilation of rooms and stairways
- Large and heavy windows up to 200 kg leaf weight
- Inward opening rectangular windows bottom-hung and side-hung leaves
- Outward-opening top-hung leaf:
- Installation on wooden, PVC or metal windows
- Leaf installation
Technical data
| F 1200 basic hardware | |
| Leaf width (min.) | 750 mm |
| Leaf height (min.) | 750 mm |
| Leaf weight (max.) | 200 kg |
Downloads

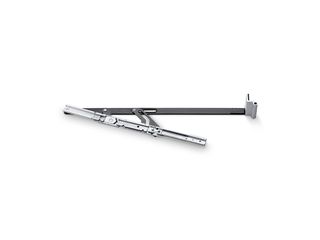

Product shot
Basic fitting F 1200
LABELLING OBLIGATION:
© GEZE GmbH
F 1200 in vertical operation
LABELLING OBLIGATION:
© GEZE GmbH
F 1200 scissor hinge
LABELLING OBLIGATION:
© GEZE GmbH
Product data sheet

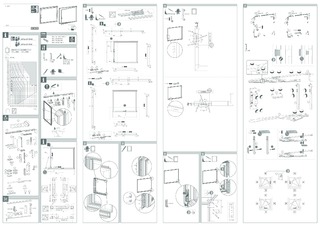

Installation instructions
Supplementary sheet
Environmental declaration
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
