Sensor strips

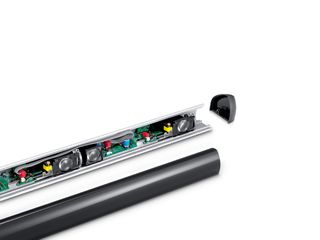

GC 335 Sensor strip with high safety standard for protecting automatic swing and revolving doors

GC 335 Sensor strip Sensor strip used for the protection of automatic swing doors in accordance with DIN 18650 under normal floor situations
  • Sensor strip with high safety standard to protect main and secondary closing edges
  • Detection area secures leaf widths of up to max. 1400 mm
  • Inclination angle and scanning range can be adjusted mechanically
Contact us

GC 335

Sensor strip with high safety standard for protecting automatic swing and revolving doors

Application Areas

  • Protection of automatic swing and revolving doors
  • Interior and exterior doors
  • Doors along escape and rescue routes
  • Normal flooring

Installation situations in reference objects and videos

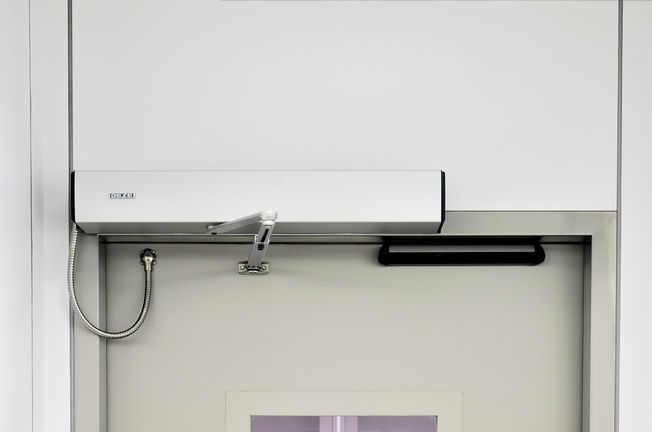

Swing door at Children's Memorial Health Institute Children, who were the weakest among the victims of the two world wars, received their own memorial. The result of this was the largest, best equipped and most modern paediatric centre in Poland, the Instytut Pomnik - Centrum Zdrowia Dziecka in Warsaw. The clinic is aptly named the Children's Memorial Health Institute (CMHI).

Swing door at Children's Memorial Health Institute

Children, who were the weakest among the victims of the two world wars, received their own memorial. The result of this was the largest, best equipped and most modern paediatric centre in Poland, the Instytut Pomnik - Centrum Zdrowia Dziecka in Warsaw. The clinic is aptly named the Children's Memorial Health Institute (CMHI). © H. Łukasz Janicki / GEZE Polska

Swing door at Children's Memorial Health Institute Children, who were the weakest among the victims of the two world wars, received their own memorial. The result of this was the largest, best equipped and most modern paediatric centre in Poland, the Instytut Pomnik - Centrum Zdrowia Dziecka in Warsaw. The clinic is aptly named the Children's Memorial Health Institute (CMHI).

Swing door at Children's Memorial Health Institute

Children, who were the weakest among the victims of the two world wars, received their own memorial. The result of this was the largest, best equipped and most modern paediatric centre in Poland, the Instytut Pomnik - Centrum Zdrowia Dziecka in Warsaw. The clinic is aptly named the Children's Memorial Health Institute (CMHI). © H. Łukasz Janicki / GEZE Polska

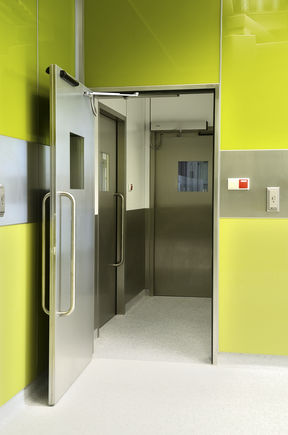

Operating room at Children's memorial health institute Children, who were the weakest among the victims of the two world wars, received their own memorial. The result of this was the largest, best equipped and most modern paediatric centre in Poland, the Instytut Pomnik - Centrum Zdrowia Dziecka in Warsaw. The clinic is aptly named the Children's Memorial Health Institute (CMHI).

Operating room at Children's memorial health institute

Children, who were the weakest among the victims of the two world wars, received their own memorial. The result of this was the largest, best equipped and most modern paediatric centre in Poland, the Instytut Pomnik - Centrum Zdrowia Dziecka in Warsaw. The clinic is aptly named the Children's Memorial Health Institute (CMHI). © H. Łukasz Janicki / GEZE Polska

Technical data

GC 335
Technology Active infrared beams
Operating current 60 mA
IP rating IP52
Cable connection type Plug-in screw terminal
Connection cable length 1000 mm
Installation height (min.) 1500 mm
Installation height (max.) 2500 mm
Reaction time < 70 ms
Service temperature -10 - 50 °C
Humidity < 90 % relative, non-condensing
Standard conformity DIN 18650, EN 16005
