TS 4000 Tandem

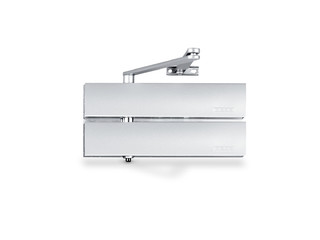

TS 4000 Tandem complete package * Overhead door closer with link arm larger than EN 7 with back check

TS 4000 Tandem Overhead pinion door closer for single-action doors with adjustable closing force and back check
  • Closing force can be variably adjusted from the front
  • Visual closing force display ensures correct setting
  • Closing seed can be adjusted from the front via valve
  • Latching action can be adjusted via link arm
  • Back check can be adjusted from the front via valve
  • Door closer, can be used for right and left hand doors
Show more
  • Minimal installation effort due to low number of individual parts and quick setting
  • Mounting is via the top closer with standard fitting dimensions
Contact us

Application Areas

  • Fire and smoke protection doors
  • Right and left single-action doors
  • Single-action doors from 1600 mm leaf width and very high weight (size > EN7)

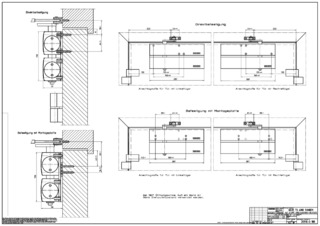

  • Door leaf installation hinge side and transom installation opposite hinge side
  • Door leaf installation opposite hinge side in parallel arm installation possible

Technical data

TS 4000 Tandem complete package
Closing force in accordance with EN 1154 EN > 7
Type of installation Door leaf installation hinge side, Transom installation opposite hinge side, Door leaf installation opposite hinge side
Opening angle (max.) 180 °
Identical design for DIN left and DIN right Yes
Suitability for fire protection doors Yes
Length 287 mm
Width 51 mm
Height 130 mm
Closing force adjustable Yes, stepless
Adjustable closing speed Yes
Latching action adjustable Yes, via link arm
Back check integrated Yes, hydraulically adjustable
Position of closing force adjustment Front
Visual closing force display Yes
Safety valve againts overload Yes
Thermo-control valves Yes
