Link arm 1-leaf

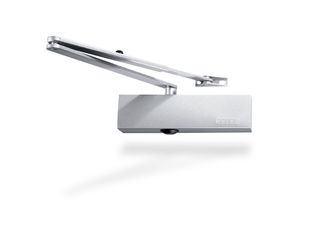

TS 2000 NV BC * Overhead door closer with link arm for single leaf doors with a leaf width up to 1100 mm

Door closer TS 2000 NV Overhead pinion door closer with link arm, Closing force size 1-4 after
  • Closing force of EN2-4 with variable adjustment
  • Can be used for right and left hand doors without conversion
  • Integrated back check, slows down doors that are thrown open forcefully
  • Hydraulic latching action which accelerates the door shortly before it is closed
  • Closing speed can be individually adjusted
  • All functions can be set from the front (except for closing force)
Contact us

TS 2000 NV BC

Application Areas

  • Fire and smoke protection doors
  • Right and left single-action doors
  • Single-action doors up to 1100 mm leaf width
  • Door leaf installation hinge side and transom installation opposite hinge side
  • Door leaf installation opposite hinge side in parallel arm installation possible

Installation situations in reference objects and videos

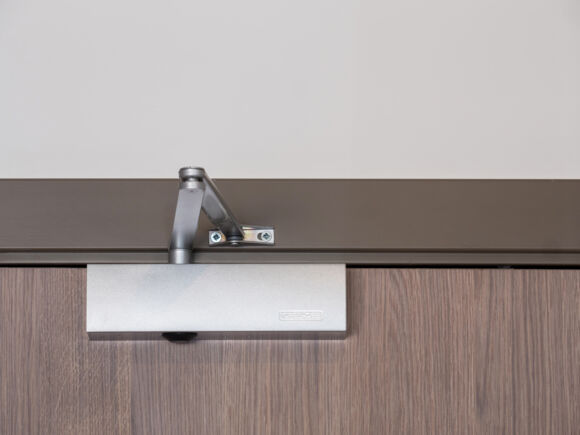

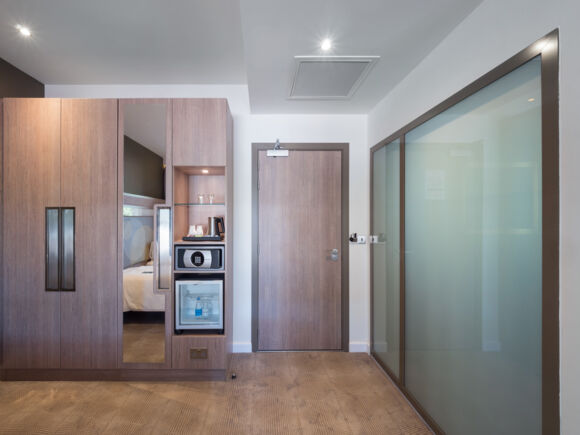

Novotel London Heathrow Sliding doors, door closers or glass partition wall systems – GEZE is turning the Novotel at Heathrow Airport into the new design flagship of the Nine Group.

Novotel London Heathrow

Sliding doors, door closers or glass partition wall systems – GEZE is turning the Novotel at Heathrow Airport into the new design flagship of the Nine Group. © GEZE GmbH

Novotel London Heathrow Sliding doors, door closers or glass partition wall systems – GEZE is turning the Novotel at Heathrow Airport into the new design flagship of the Nine Group.

Novotel London Heathrow

Sliding doors, door closers or glass partition wall systems – GEZE is turning the Novotel at Heathrow Airport into the new design flagship of the Nine Group. © GEZE GmbH

Technical data

TS 2000 NV BC
Closing force in accordance with EN 1154 EN 2 - 4
Barrier-free in accordance with DIN 18040 up to leaf width (max.) in mm 1100 mm
Leaf width (max.) 1100 mm
Type of installation Door leaf installation hinge side, Door leaf installation opposite hinge side, Transom installation opposite hinge side
Suitability for fire protection doors Yes
Closing force adjustable Yes, stepless
Latching action adjustable Yes, via valve
Back check integrated Yes, hydraulically adjustable
Position of closing force adjustment At the side
Hold-open function Optional

Downloads

Variants & Accessories

Link arm TS 4000/2000
Parts

Link arm TS 4000 / 2000

With mechanical hold-open device

Product details
Link arm TS 2/4000 with mech. hold-op func. that can be switched on/off
Parts

Link arm TS 4000 / 2000

with mechanical hold-open device which can be switched on and off

Product details
Link arm TS 4000/2000
Parts

Link arm TS 4000 / 2000

Standard link arm

Product details
