Hygienic Doors

Powerdrive PL-HT Automatic linear sliding door system for large and heavy doors in areas with increased hygiene stipulations

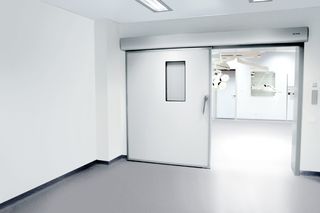

Schiebetürsystem Powerdrive PL-HT, hier in einem Krankenhaus Automatisches Linear-Schiebetürsystem für große schwere Türen in Bereichen mit erhöhten Hygieneanforderungen.
  • Consists of drive kit, aluminium profiles, floor guide profiles and seals
  • Door construction can be freely selected by the customer
  • Hermetic seal by lowering and pressing the door leaf against the frame structure
  • Full circumferential sealing system with sealing corners reduces the air permeability of the closed sliding door system
  • Optimised opening widths for hospital operation (nurse opening, cleaning opening, bed opening)
  • Can be networked, and integrated into the building automation via open standard (BACnet)
Show more
  • Independent error recognition and recording
  • Freely configurable inputs and outputs for different functions
  • Integrated battery for emergency opening and closing in the event of a power failure
  • Self-cleaning roller carriage reduces maintenance effort and costs
  • Various mechanical and electrical locks are optionally available
Contact us

Application Areas

  • Single leaf sliding door systems
  • Interior doors with increased hygiene requirements, such as operating rooms, laboratories, clean rooms
  • Opening widths from 800 to 2500 mm possible
  • Door leaf weights of up to 200 kg
  • Fine-framed profile system with ISO glass is the suitable profile system

Technical data

Powerdrive PL-HT
For 1-leaf door systems Yes
Leaf weight (max.) 1-leaf 200 kg
Opening width 1-leaf 800 mm - 2500 mm
Service temperature -15 - 50 °C
IP rating IP20
Disconnection from mains Main switch in the drive
Standard conformity DIN 18650, DIN EN ISO 13849: Performance Level D, EN 16005
