Radar movement detectors

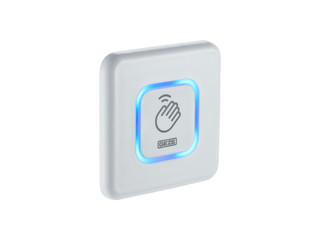

GC 307+ * Non-contact proximity switch for activating automatic doors

GC 307+ Manual, flush-mounted, blue
  • Doors can be opened without a requirement for tactile perception
  • External input for LED colour change
  • Detects persons and objects in a detection area of 10 - 60 cm
  • Scanning ranges adjustable to make environmentally and user-specific adjustments

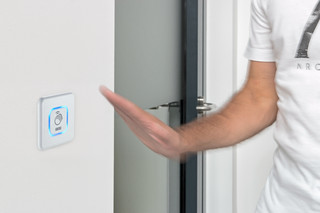

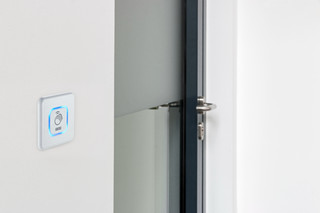

  • Hand-height mounting ensures convenient, barrier-free access
  • Can also be installed behind tiles or glass
Show more
  • Adjustable via DIP switch and remote control; acoustic feedback, LED colours, LED animations, pulse/toggle mode
  • WC control function for locking and automatic unlocking of toilets
Contact us

Application Areas

  • Non-contact activation of automatic swing, sliding, folding, revolving and curved sliding doors
  • Interior and external doors
  • Rooms with high hygiene demands

Technical data

GC 307+
Dimensions 80 x 80 mm
Technology Electromagnetic radar waves
Operating voltage 12-24 V DC +30% /-10% / 12-24 V AC ± 10%
Switching capacity max. 100 mA
Output Electrical relay
IP rating IP65
Connection type Screw terminal
Adjustability Per DIP switch, with remote control
Installation height at hand level
Transmission frequency 24.15 GHz
Service temperature -20 - 55 °C
Standard conformity RED 2014/53/EU, RoHS 2011/65/EU
