Link arm 1-leaf

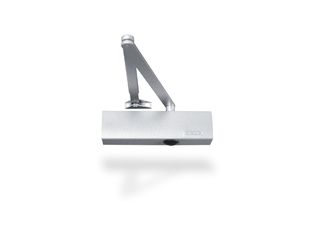

TS 2100 V BC * Overhead door closer with link arm for single leaf doors with a leaf width up to 1250 mm
- Variable closing force of EN3, EN4 or EN5 due to offset installation
- Can be used for right and left hand doors without conversion
- Integrated back check, slows down doors that are thrown open forcefully
- Hydraulic latching action which accelerates the door shortly before it is closed
- Closing speed can be individually adjusted
- Approved by the GEZE Laboratory for ambient temperatures down to -40 °C
Application Areas
- Right and left single-action doors
- Single-action doors up to 1250 mm leaf width
- Door leaf installation hinge side and transom installation opposite hinge side
- Door leaf installation opposite hinge side in parallel arm installation possible
- Can be used with low ambient temperatures
Technical data
| TS 2100 V BC | |
| Closing force in accordance with EN 1154 | EN 3/4/5 |
| Barrier-free in accordance with DIN 18040 up to leaf width (max.) in mm | 1100 mm |
| Leaf width (max.) | 1250 mm |
| Type of installation | Door leaf installation hinge side, Door leaf installation opposite hinge side, Transom installation opposite hinge side |
| Opening angle (max.) | 180 ° |
| Closing force adjustable | Yes, via installation |
| Adjustable closing speed | Yes |
| Latching action adjustable | Yes, via valve |
| Back check integrated | hydraulically fixed |
| Position of closing force adjustment | Mounting position |
| Hold-open function | Optional |
Downloads

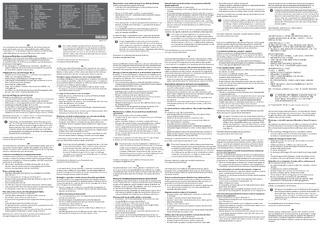

Door closer TS 2000 V
