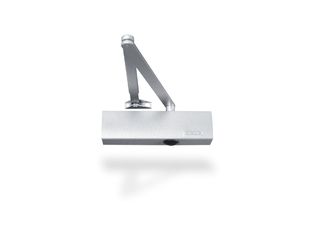

TS 2100 V * Overhead door closer with link arm for single leaf doors with a leaf width up to 1250 mm

Door closer TS 2000 V Overhead pinion door closer with link arm, Closing force size 2/4/5 acc. to
  • Variable closing force of EN3, EN4 or EN5 due to offset installation
  • Can be used for right and left hand doors without conversion
  • Integrated back check, slows down doors that are thrown open forcefully
  • Mechanical latching action which accelerates the door shortly before the closed position
  • Closing speed can be individually adjusted
  • Approved by the GEZE Laboratory for ambient temperatures down to -40 °C
Contact us

Application Areas

  • Right and left single-action doors
  • Single-action doors up to 1250 mm leaf width
  • Door leaf installation hinge side and transom installation opposite hinge side
  • Door leaf installation opposite hinge side in parallel arm installation possible
  • Can be used with low ambient temperatures

Technical data

TS 2100 V
Closing force in accordance with EN 1154 EN 3/4/5
Barrier-free in accordance with DIN 18040 up to leaf width (max.) in mm 1100 mm
Leaf width (max.) 1250 mm
Type of installation Door leaf installation hinge side, Door leaf installation opposite hinge side, Transom installation opposite hinge side
Opening angle (max.) 180 °
Closing force adjustable Yes, via installation
Adjustable closing speed Yes
Latching action adjustable Yes, via link arm
Back check integrated No
Position of closing force adjustment Mounting position
Hold-open function Optional
