Link arm 1-leaf
FDC 36 with standard rod * Overhead door closer with link arm for single leaf doors with a leaf width of up to 1400 mm
- Closing force with variable adjustment EN 3-6
- Can be used for right and left hand doors without conversion
- Closing speed can be individually adjusted
- Integrated back check, slows down doors that are thrown open forcefully
- All functions can be set from the front (except for closing force)
Application Areas
- Right and left single-action doors
- Single-action doors up to 1400 mm leaf width
- Door leaf installation opposite hinge side
- Transom installation opposite hinge side
Technical data
| FDC 36 with standard rod | |
| Leaf width (max.) | 1400 mm |
| Type of installation | Door leaf installation hinge side, Transom installation opposite hinge side, Door leaf installation opposite hinge side |
| Opening angle (max.) | 180 ° |

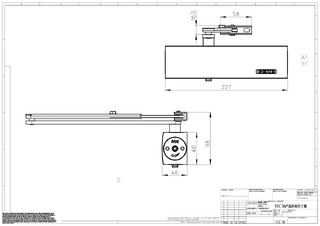

| Length | 227 mm |
| Width | 46 mm |
| Height | 60 mm |
| Adjustable closing speed | Yes |
| Latching action adjustable | Yes, via valve |
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
