TS 4000 R-IS

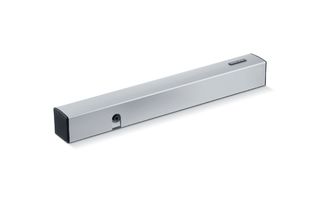

Closer body TS 4000 R-IS KM BG second unit * Main body for overhead door closer with link arm EN 1-6 without smoke control unit with closing sequence control and electric hold-open device

GEZE TS 4000 R-IS KM BG Second unit
  • Closing force can be variably adjusted from the front
  • Visual closing force display ensures correct setting
  • Closing seed can be adjusted from the front via valve
  • Latching action can be adjusted via link arm
  • Electric hold-open device
  • Door closer, can be used for right and left hand doors
Show more
  • Supply voltage 24V DC via GEZE TS 4000 R-IS primary device
Contact us

Application Areas

  • Fire and smoke protection doors
  • Double leaf single-action doors
  • Symmetrical and asymmetrical division of door possible
  • Single-action doors up to 2800 mm hinge clearance and 1400 mm leaf width
  • Transom installation opposite hinge side
  • Hold-open systems with integrated hold-open device

Technical data

Closer body TS 4000 R-IS KM BG second unit
Closing force in accordance with EN 1154 EN 1 - 6
Leaf width (max.) 1400 mm

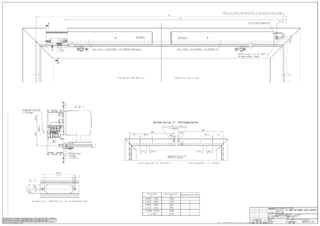

Type of installation Transom installation opposite hinge side
Opening angle (max.) 180 °
Identical design for DIN left and DIN right Yes
Supply voltage 24 V
Input voltage 24 V DC
Duty rating 100 %
Residual ripple 20 %
IP rating IP20
Standard conformity EN 1154:1996/A1:2002/AC:2006, EN 1155
Length 547 mm
Width 65 mm
Height 65 mm
Closing force adjustable Yes, stepless
Adjustable closing speed Yes
Latching action adjustable Yes, via link arm
Back check integrated No
Position of closing force adjustment Front
Visual closing force display Yes
Safety valve againts overload Yes
Thermo-control valves Yes
Hold-open function Electrical
Hold-open device can be overridden Yes
Hold-open range 80 ° - 175 °
