TS 1500

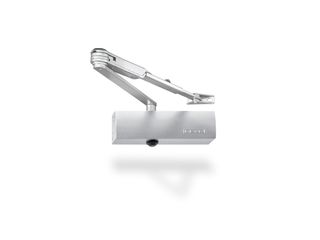

TS 1500 with hold-open arm * Overhead door closer with link arm for single leaf doors with a leaf width up to 1100 mm

TS 1500 with hold-open arm
  • Variable closing force of EN3 or EN4 by reversing the bearing block
  • Can be used for right and left hand doors without conversion
  • Mechanical hold-open unit through hold-open linkage with hold-open area 70°-150°
  • Hydraulic latching action which accelerates the door shortly before it is closed
  • Closing speed can be individually adjusted
Contact us

Overhead door closer with link arm for single leaf doors with a leaf width up to 1100 mm

Application Areas

  • Right and left single-action doors
  • Holds doors without smoke and fire protection requirements open
  • Single-action doors up to 1100 mm leaf width
  • Door leaf installation hinge side and transom installation opposite hinge side
  • Door leaf installation opposite hinge side in parallel arm installation possible

Technical data

TS 1500 with hold-open arm
Closing force in accordance with EN 1154 EN 3/4
Leaf width (max.) 1100 mm
Type of installation Door leaf installation hinge side, Door leaf installation opposite hinge side, Transom installation opposite hinge side
Opening angle (max.) 180 °
Closing force adjustable Yes, via installation
Adjustable closing speed Yes
Latching action adjustable Yes, via link arm
Hold-open range 70 ° - 150 °
