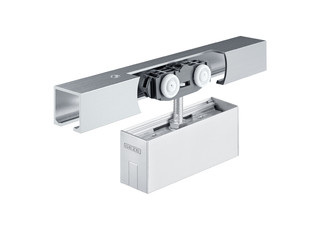

Rollan 80 NT complete set * Sliding door fitting for glass leaves

Set Rollan 80 NT for glass leaf / Rollan 80 NT glass
  • Sliding door fitting for glass leaves with up to 80 kg leaf weight
Contact us

Application Areas

  • For glass leaves with a 30 mm glass clamping plate
  • For leaf weights up to 80 kg
  • For wall and ceiling installation

Technical data

Rollan 80 NT complete set
Leaf material Glass
Leaf weight (max.) 80 kg
Leaf weight (max.) with draw-in damper 40 kg
Number of leaves 1-leaf, 2-leaf
Leaf width (min.) 500 mm
Leaf width (max.) 1640 cm
Test cycles 50000
Corrosion protection class 1
Glass thickness 8 - 10 mm
Type of installation Wall, Ceiling
Access for all according to DIN 18040
