ECdrive

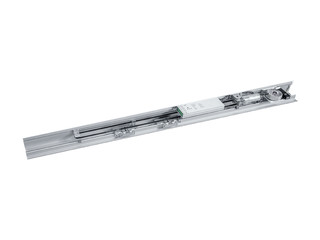

ECdrive 90 Kit * Automatic linear sliding door system for doors with a leaf weight of up to 90 kg
- Door control unit (DCU) equipped with self-learning function, helps implement intelligent operation
- Operation and parameter setting for the DCU via Bluetooth over WeChat
- Parameter setting and troubleshooting possible directly on the DCU without additional service tool
- Very smooth-running, low-wear drive solution
- The roller carriage has an anti-tip function and is easy to install and adjust
- Rechargeable battery for emergency opening and closing in case of a power failure is available as an option
Application Areas
- Single and double leaf sliding door systems
- Interior and exterior doors with high access frequency
- Complete solution for entrance areas with vestibule
- Opening widths from 700 to 3000 mm possible
Technical data
| ECdrive 90 Kit | |
| For 1-leaf door systems | Yes |
| For 2-leaf door systems | Yes |
| Depth | 135 mm |
| Leaf weight (max.) 1-leaf | 90 kg |
| Leaf weight (max.) 2-leaf | 180 kg |
| Opening width 1-leaf | 700 mm - 3000 mm |
| Opening width 2-leaf | 900 mm - 3000 mm |
| Service temperature | -20 - 55 °C |
| IP rating | IP20 |
| Standard conformity | EN 61000, 2011/65/EU |
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
