Mortise locks

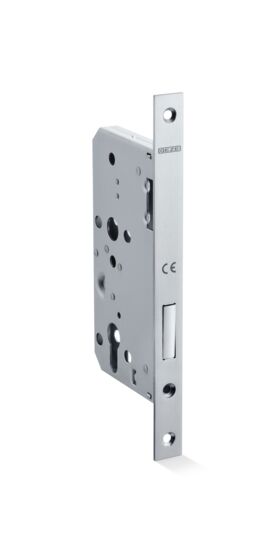

Lock ML DL 72 * Deadlock centres 72 mm suitable for doors with GEZE door closers or with GEZE ActiveStop
- Backset 55 mm and 60 mm available
- Suitable for EPC Euro profile cylinders
- Face and strike plate made of stainless steel
- With installation materials and strike plate
Application Areas
- Metal and timber doors
- Suitable for doors with GEZE door closers or GEZE ActiveStop
- Suitable for DIN left and right
- Fire and smoke protection doors
Technical data
| Lock ML DL 72 | |
| Surface | Brushed stainless steel |
| Suitability for fire protection doors | Yes |
| DIN direction | left / right |
| Bolt | Yes |
| Distance lock | 72 mm |
| Height (lock case) | 165 mm |
| Depth (lock case) | 15 mm |
| Face plate | rectangular |
| Width of flat face plate | 20 cm |
| Faceplate length | 235 cm |
| Type of installation | in the door leaf |
Downloads
GEZE Lock ML DL 72
LABELLING OBLIGATION: © GEZE GmbH
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
