TS 510 EN 3

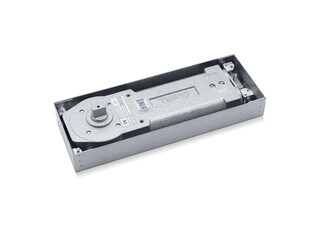

Closer body TS 510 EN 3 * Basic body for floor spring EN 3
- Fixed closing force of EN 3
- Can be used for right and left hand doors without conversion
- Closing speed can be individually adjusted
- Hydraulic latching action which accelerates the door shortly before it is closed
- Integrated back check, slows down doors that are thrown open forcefully
- All functions can be adjusted from above and in the installed state
Application Areas
- Fire and smoke protection doors
- Right and left single- and double-action doors
- Single- and double-action doors up to 950 mm leaf width and 100 kg weight
- Floor mounting, concealed
Technical data
| Closer body TS 510 EN 3 | |
| Suitability for fire protection doors | Yes |
| Use on single-/double-action door | Single-action door, Double-action door |
| Opening angle (max.) | 130 ° |
| Closing force in accordance with EN 1154 | EN 3 |
| Leaf width (max.) | 950 mm |
| Leaf weight (max.) | 100 kg |
| DIN direction | left / right |
| Closing force adjustable | No |
| Hold-open of fire protection doors | Yes |
Downloads
TS 510 EN 3
LABELLING OBLIGATION:
© GEZE GmbH
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
