Floor spring 1-leaf

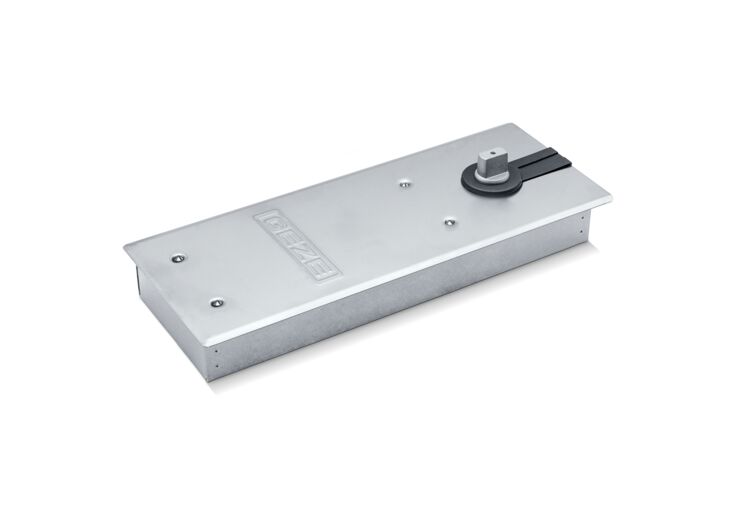

TS 510 EN 3 * Floor spring for single leaf single and double-action doors of up to 950 mm leaf width with fixed closing force EN 3 and with optional hold-open function
- Fixed closing force of EN 3
- Can be used for right and left hand doors without conversion
- Closing speed can be individually adjusted
- Hydraulic latching action which accelerates the door shortly before it is closed
- All functions can be adjusted from above and in the installed state
Application Areas
- Right and left single- and double-action doors
- Single- and double-action doors up to 950 mm leaf width and 100 kg weight
- Floor mounting, concealed
Technical data
| TS 510 EN 3 | |
| Suitability for fire protection doors | No |
| Use on single-/double-action door | Single-action door, Double-action door |
| Opening angle (max.) | 130 ° |
| Closing force in accordance with EN 1154 | EN 3 |
| Leaf width (max.) | 950 mm |
| Leaf weight (max.) | 100 kg |
| DIN direction | left / right |
| Length | 305 mm |
| Width | 108 mm |
| Height | 42 mm |
| Length adjustment range for cement box | 7.5 mm |
| Width adjustment range for cement box | 9 mm |
| Height adjustment range for cement box | 2.5 mm |
| Closing force adjustable | No |
| Adjustable closing speed | Yes |
| Hold-open function | Optional |

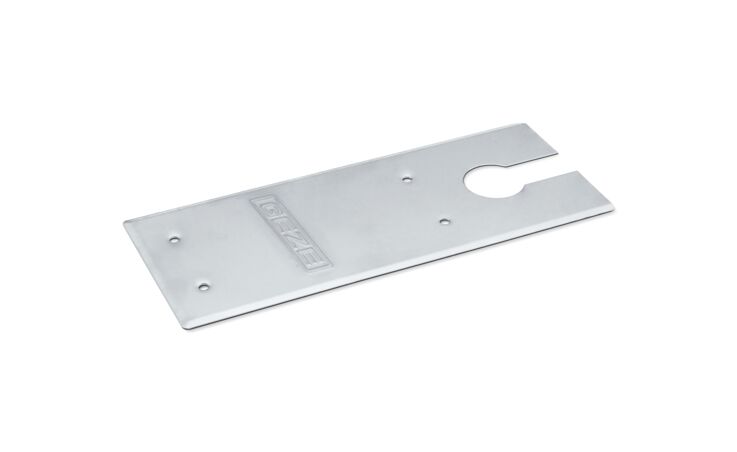

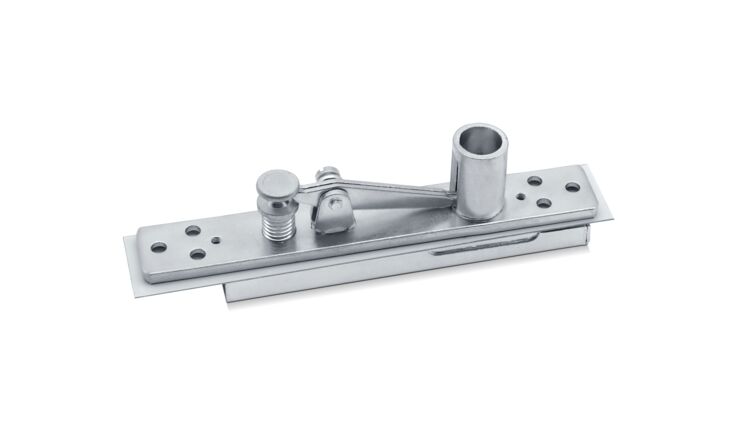

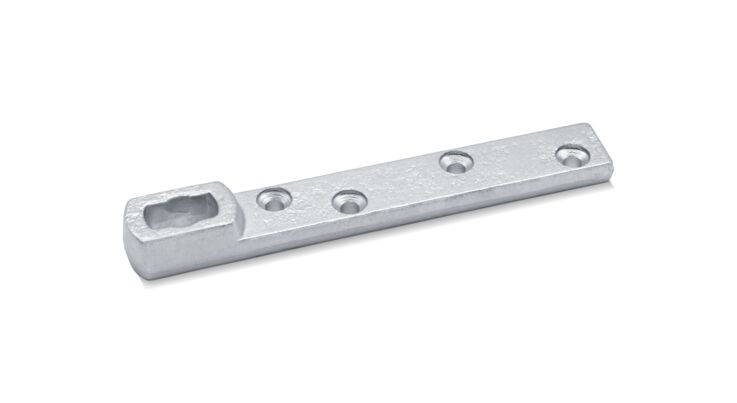

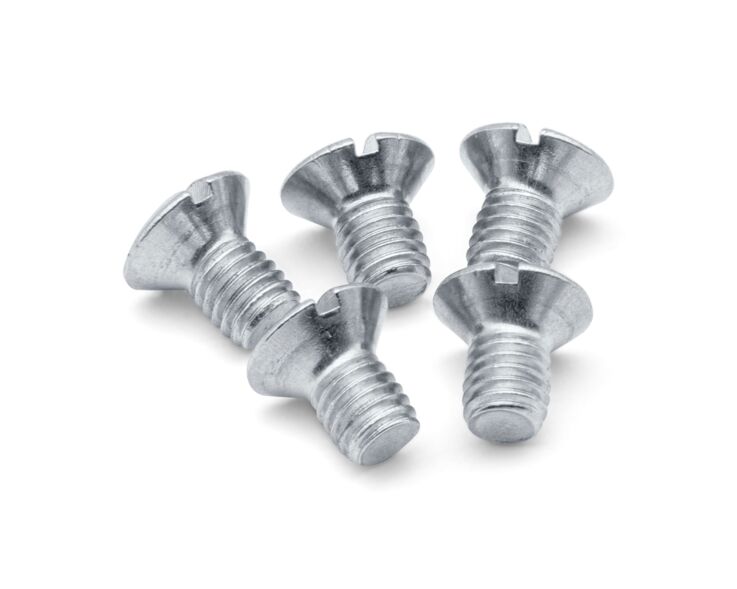

Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
