TSA 325

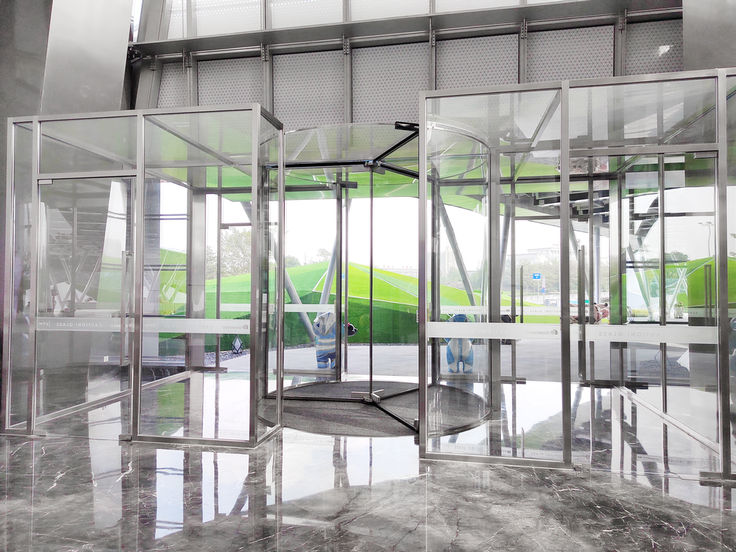

TSA 325 GG * Automatic revolving door system for the realization of all-glass solutions
- Very quiet-running, low-wear drive solution with at least 20 mm canopy height
- Drive and control technology are fully concealed in the floor
- Glass roof with reduced profiles provides additional transparency
- Reduced aluminium profiles with rounded edges create modern-looking optics
- Effective insulation effect against draughts, weather and noise
- Smooth and secure swing action
Application Areas
- 3- and 4-leaf all-glass door systems
- Interior and exterior doors with high access frequency
- Representative building entrances with large incidence of light
- Façades with slim mullion-transom constructions
- Glass façades with the highest design standards
- Inner diameters of 2000 to 3000 mm possible
- Underfloor installation, drive installed in the floor (variant B)
- Drive mounted under the suspended ceiling (variant A)
Technical data
| TSA 325 GG | |
| Manual operation | Yes |
| Fully automatic operation | Yes |
| Servo function | Yes |
| Suitability for escape and rescue routes | No |
| Break-out function (BO) | No |
| Inner diameter (min.) | 2000 mm |
| Inner diameter (max.) | 3000 mm |
| For 3-leaf door systems | Yes |
| For 4-leaf door systems | Yes |
| Clear passage height | 3000 mm |
| Canopy height (min.) | 20 mm |
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
