TSA 365

TSA 365 NT Automatic double leaf revolving door system with integrated sliding door

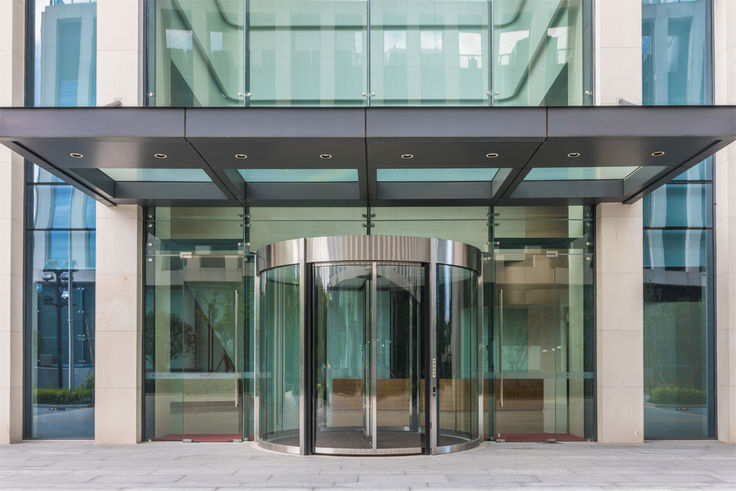

TSA 365 NT Automatic double leaf revolving door system
  • Customised choice of diameter, passage height and surfaces
  • Extensive equipment options
  • Powerful drive technology for doors up to 4800 mm diameter
  • Simple installation of the door system
  • Fast commissioning thanks to pre-cabled and configured sensors
Contact us

Application Areas

  • Double leaf door systems
  • Interior and exterior doors with high access frequency
  • Representative building entrances with large incidence of light
  • Diameters from 3000 to 4800 mm possible

Technical data

TSA 365 NT
Fully automatic operation Yes
Inner diameter (min.) 3000 mm
Inner diameter (max.) 4800 mm
Clear passage height 3000 mm
Canopy height (min.) 300 mm
Side elements version 10 mm LSG
Surface Powder-coated according to RAL, coated with grit 240 stainless steel, Coated with polished stainless steel, special coating on request
Version of roof structure As dust protection roof with wood covering, optical sheet metal covering, waterproof roof with waterspout
Illumination Yes
Floor covering Entrance mat, Entrance mat according to customer wishes
Hot-air curtain system Electric air curtain, hot water air curtain, installed on top of the suspended ceiling construction
Lock Motor gear unit brake
Floor ring Yes
Disabled person's button Yes
Standard conformity EN 16005
