Hinge BHZ 4"x4"x3mm * Door hinge type Z made of stainless steel 4" x 4" x 3 mm

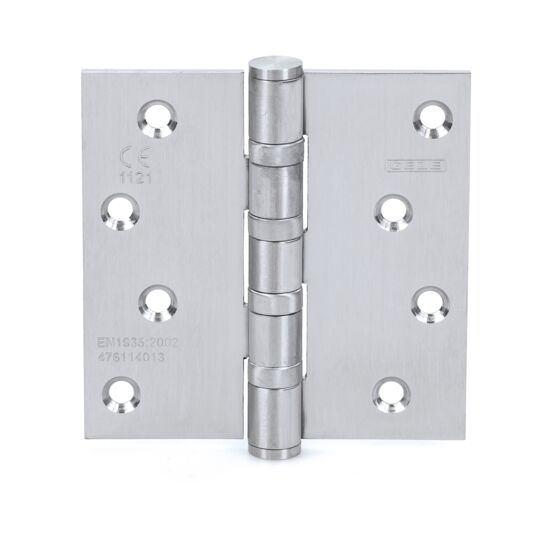

GEZE hinge BHZ 4x4x3 4BB SSS Stainless steel 304 butt hinge, 4“x4“x3 mm, Z type (Pair) with mounting accessories
  • Four ball-bearings
  • Scope of delivery two pieces
  • Laser etched GEZE logo, classification and CE mark on the product
Contact us

Application Areas

  • Metal and timber doors
  • For leaf weights up to 120 kg
  • Suitable for DIN left and right
  • Fire and smoke protection doors

Technical data

Hinge BHZ 4"x4"x3mm
Dimensions 102 x 102 x 3 mm
Width 102 mm
Depth 3 mm
Height 102 mm
Leaf weight (max.) 120 kg
Suitability for fire protection doors Yes
DIN direction left / right
Material Stainless steel
