Fan light and connector patches

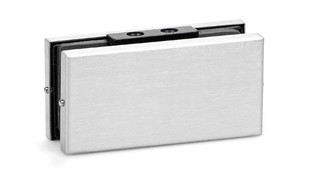

PT 84 * Glass Fitting connector fitting for glass-wall and glass-ceiling (double)

GEZE Glass Fitting PT 84 Glass fitting
  • Elegant cover caps made of polished or brushed stainless steel
  • Problem-free adjustment to glass thicknesses of 10 – 12 mm
Contact us

Application Areas

  • For static toughened glass assemblies
  • For glass thicknesses 10 and 12 mm
  • For internal and external systems

Technical data

PT 84
Dimensions 105 x 32 x 52 mm
Width 32 mm
Length 105 mm
Height 52 mm
Glass thickness (min.) 10 mm
Glass thickness (max.) 12 mm
Type of installation Glass installation, Ceiling

Variants & Accessories
