Fan light and connector patches
PT 30 * Glass Fitting fanlight fitting with pivot bearing bolts (ø 15 mm) and wall attachment accessories
- Elegant cover caps made of polished or brushed stainless steel
- Problem-free adjustment to glass thicknesses of 10 – 12 mm
Application Areas
- For fixed toughened glass assemblies
- For glass thicknesses 10 and 12 mm
- For internal and external systems
Technical data
| PT 30 | |
| Dimensions | 163 x 32 x 51 mm |
| Width | 32 mm |
| Length | 163 mm |
| Height | 51 mm |
| Glass thickness (min.) | 10 mm |
| Glass thickness (max.) | 12 mm |
| Type of installation | Glass installation |
Downloads
Product shot

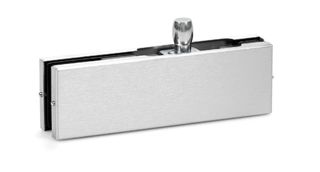

GEZE Glass Fitting PT 30
LABELLING OBLIGATION:
© GEZE GmbH
Product data sheet

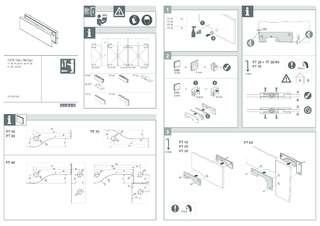

Installation instructions
Tender texts
Product brochure
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
