Corner fittings and pivot bearing

DL-FL Floor-mounted pivot bearing with flat conical bolts (FL)

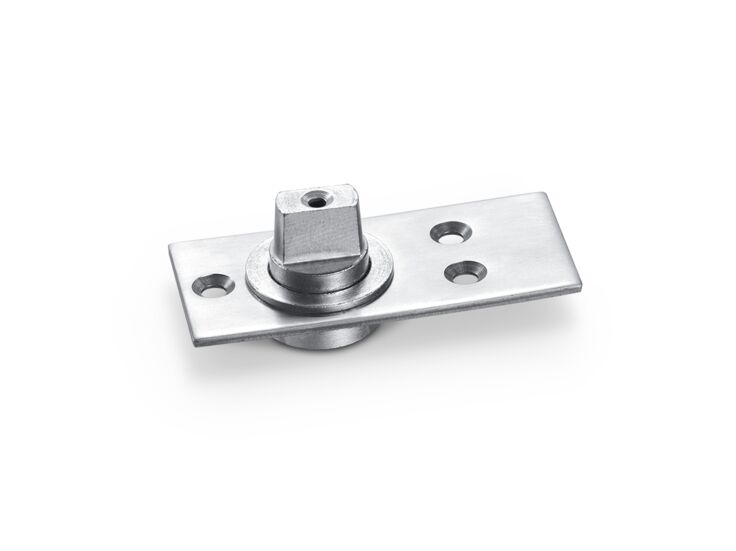

Floor-mounted pivot bearing patch fittings with flat-conical spindle
  • Stainless steel
Contact us

DL-FL

Floor-mounted pivot bearing with flat conical bolts (FL)

Application Areas

  • In connection with corner fittings for all-glass doors

Installation situations in reference objects and videos

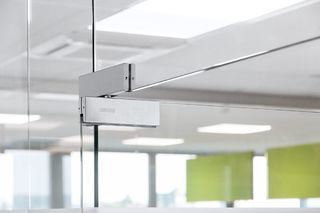

GEZE Patch Fittings Top floor-mounted pivot bearing with screw-out pivot bearing bolt

GEZE Patch Fittings

Top floor-mounted pivot bearing with screw-out pivot bearing bolt © GEZE GmbH

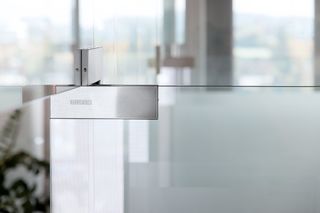

GEZE Patch Fittings Detailed view of the top floor-mounted pivot bearing with screw-out pivot bearing bolt on one all-glass door.

GEZE Patch Fittings

Detailed view of the top floor-mounted pivot bearing with screw-out pivot bearing bolt on one all-glass door. © GEZE GmbH

Technical data

DL-FL
