TS 5000 R-ISM/G

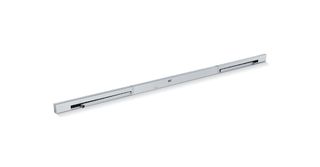

R-ISM/G guide rail TS 5000 * continuous, with integrated closing sequence control, electric hold-open device on the active leaf, smoke switch control unit, and levers

R-ISM/0/S guide rail TS 5000
  • Electrical hold-open device on the passive leaf with hold-open range 80°-130°
  • Retention force of the electromechanical hold-open device can be variably adjusted
  • Integrated smoke switch control unit
  • Smoke switch with contamination indicator and adaption of the alarm threshold
  • Additional smoke detectors can be fitted
  • Operating voltage 230 V AC
Show more
  • Closing sequence control holds the active leaf in the waiting position until the passive leaf is closed
  • Vandalism protection through flexible Bowden cable
  • Horizontally adjustable in the installation position by 4 mm through elongated holes
  • With screwed slide block
Contact us

Application Areas

  • Double leaf doors with closing sequence control
  • Hold-open systems with integrated hold-open device on the active leaf
  • Installation on hinge side
  • Right and left single-action doors
  • Symmetrical and asymmetrical division of door possible
  • Up to 2800 mm hinge clearance
  • Minimum hinge clearance 1500 mm, minimum width of the passive leaf 400 mm

Technical data

R-ISM/G guide rail TS 5000
Supply voltage 230 V AC
Input voltage 230 V AC
Frequency of supply voltage 50/60 Hz
Duty rating 100 %
IP rating IP20
Minimum hinge clearance 1500 mm
Minimum passive leaf width 400 mm
Standard conformity EN 1155, EN 1158
Approvals General building approval from DIBt as a hold-open system
Length 2740 mm
Width 55 mm
Height 30 mm
opening restrictor upgradable Yes
Hold-open function Electrical
Hold-open device can be overridden Yes
Hold-open range 80 ° - 130 °
Smoke switch integrated Yes
Contamination indicator Yes
Adaption of the alarm threshold Yes
Integrated power supply Yes
Closing sequence control integrated Yes
Height correction possible Yes
Flexible opening restrictor Yes
