TS 5000 L

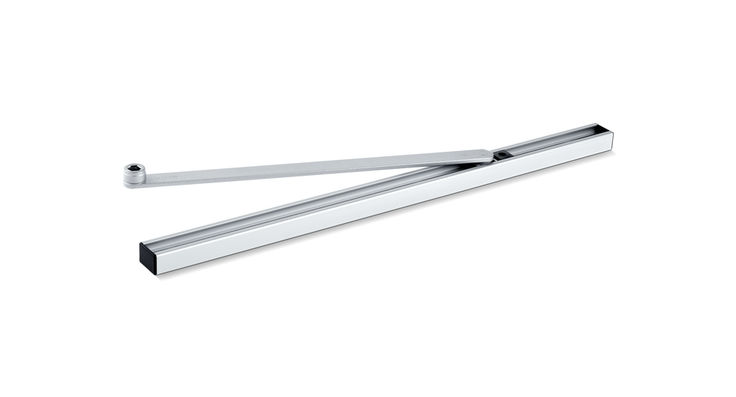

Guide rail BG lintel mounting TS 3/5000 L Guide rail for lintel installation with lever, opposite hinge side

Guide rail BG lintel mounting TS 3/5000 L Guide rail (20.7mm) for installation in the lintel on the opposite hinge side for TS 5000 L and TS 3000.
  • With riveted sliding block
Contact us

Guide rail for lintel installation with lever, opposite hinge side

Application Areas

  • Single leaf doors
  • Installation on the opposite hinge side
  • Right and left single-action doors
  • Lintel installation fixing to the top

Technical data

Guide rail BG lintel mounting TS 3/5000 L
Length 550 mm
Width 30.5 mm
Height 20.7 mm
opening restrictor upgradable Yes
Hold-open function Optional
Hold-open device can be overridden Yes
