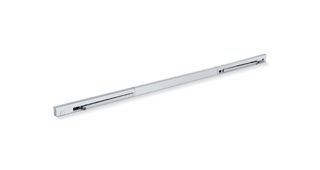

E- ISM guide rail BG TS 5000 * With closing sequence control, electrical hold-open device on both leaves and levers
- Electric hold-open device in the guide rail with hold-open area of 80°-130°
- Retention force of the electromechanical hold-open device can be variably adjusted
- Operating voltage 24 V DC
- Closing sequence control holds the active leaf in the waiting position until the passive leaf is closed
- Vandalism protection through flexible Bowden cable
- Horizontally adjustable in the installation position by 4 mm through elongated holes
Application Areas
- Double leaf doors with closing sequence control
- Hold-open systems with integrated hold-open device
- Installation on the opposite hinge side
- Right and left single-action doors
- Symmetrical and asymmetrical division of door possible
Technical data
E- ISM guide rail BG TS 5000 | |
Input voltage | 24 V DC |
Electrical power consumption | 4.8 W |
Duty rating | 100 % |
Residual ripple | 20 % |
IP rating | IP43 |
Minimum hinge clearance | 1360 mm |
Minimum passive leaf width | 380 mm |
Standard conformity | EN 1155, EN 1158 |
Length | 2665 mm |
Width | 55 mm |
Height | 30 mm |
opening restrictor upgradable | Yes |
Hold-open function | Electrical |
Hold-open device on the active leaf / passive leaf | Yes / Yes |
Hold-open device can be overridden | Yes |
Hold-open range | 80 ° |
Closing sequence control integrated | Yes |
Height correction possible | Yes |
Flexible opening restrictor | Yes |
