Levolan 120 wood
Levolan 120 complete set Levolan sliding door fitting for leaf weights up to 120 kg
- Design sliding door fitting for glass and timber leaves
Levolan sliding door fitting for leaf weights up to 120 kg
Application Areas
- For leaf weights up to 120 kg
- For glass elements toughened safety of 10 and 12 mm as well as laminated safety glass of up to 12 mm (with additional LSG kit) and timber leaves up to a weight of 120 kg
- For wall and ceiling installation
- Suitable for interior use
Installation situations in reference objects and videos
Levolan 120 sliding door fitting

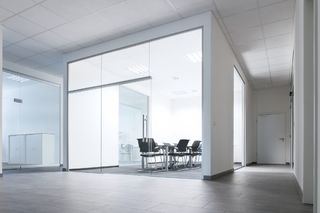

Levolan 120 sliding door fitting with slim design with integrated fitting technology, installed in an office building © GEZE GmbH
Installation video The Levolan 120 sliding door by GEZE: more power – with ease

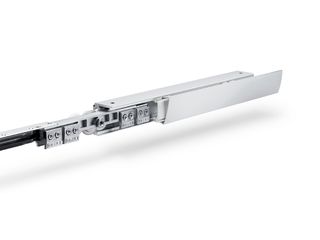

The fitting technology of the Levolan 120 sliding door system is completely integrated in the only 50 millimetre high track. It moves manual sliding doors for internal application with leaf weights up to 120 kg.
Technical data
| Levolan 120 complete set | |
| Leaf material | Glass, Plastic, Metal, Wood |
| Leaf weight (max.) | 120 kg |
| Leaf weight (max.) with draw-in damper | 120 kg |
| Number of leaves | 1-leaf, 2-leaf |
| Test cycles | 100000 |
| Corrosion protection class | 3 |
| Glass thickness | 10 - 12 mm |
| Type of installation | Wall, Ceiling, Concealed in the ceiling, Glass installation |
| Side panel | Yes |
