Scissors OL 95 * Scissors OL 95 with standard leaf bracket and unhinging inhibitor
- Achieves the full opening width of 220 mm for all leaf heights
- Little space necessary thanks to flat design of the scissors
- Locking in the scissors guarantees a safe leaf locking mechanism
- Unhinging inhibitor and lockable hand lever offer additional safety
- Scissor unhooking by pressing the release button facilitates window cleaning from inside and outside
- Completely pre-mounted assembly groups facilitate installation
Application Areas
- Manual aeration and ventilation of rooms and stairwells
- Mullion-transom construction due to smaller overall height
- Smoke extraction in stairwells
- Inward-opening rectangular windows with bottom-hung, top-hung, side-hung and centre pivoted leaves
- Installation on wooden, PVC or metal windows
- Leaf installation

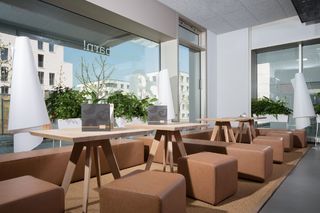

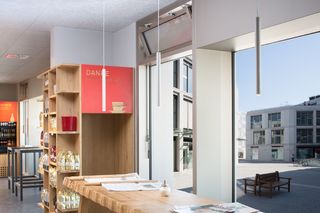

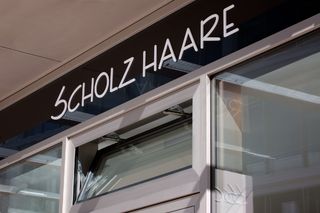

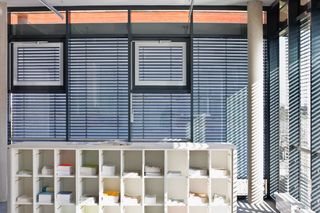

Installation situations in reference objects and videos
OL 90 N with hand lever, Academy of Fine Arts Alfter
Surface mounted Slimline skylight opener with an opening width of 170 mm © Lothar Wels / GEZE GmbH
OL 90 N, Killesberg Stadtquartier (urban district)
Surface mounted Slimline skylight opener with an opening width of 170 mm © Nikolaus Grünwald / GEZE GmbH
TS 5000 + OL 90 N post-frame transmission, Augustinum
TS 5000: Fire and smoke protection doors + OL 90 N: Inward opening bottom-hung windows, post-frame transmission © Dirk Wilhelmy / GEZE GmbH
OL 90 N, Hotel Amano
Surface mounted Slimline skylight opener with an opening width of 170 mm © Stefan Dauth / GEZE GmbH
OL 90 N, Killesberg Stadtquartier (urban district)
Surface mounted Slimline skylight opener with an opening width of 170 mm © Nikolaus Grünwald / GEZE GmbH
OL 90 N, Killesberg Stadtquartier (urban district)
Surface mounted Slimline skylight opener with an opening width of 170 mm © Nikolaus Grünwald / GEZE GmbH
OL 90 N with hand lever, Academy of Fine Arts Alfter
Surface mounted Slimline skylight opener with an opening width of 170 mm © Lothar Wels / GEZE GmbH
Technical data
| Scissors OL 95 | |
| Leaf width (min.) | 440 mm |
| Leaf height (min.) | 350 mm |
| Leaf weight (max.) | 60 kg |
| Space needed (max.) | 21 mm |
Downloads
Product shot
Installation situation

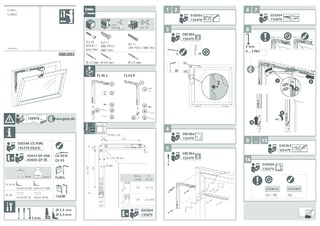

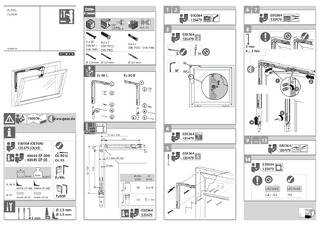

Installation instructions
Certificate

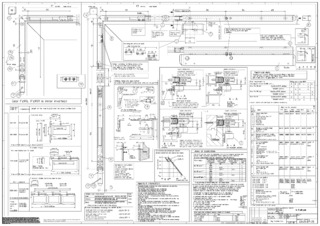

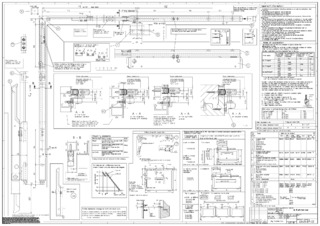

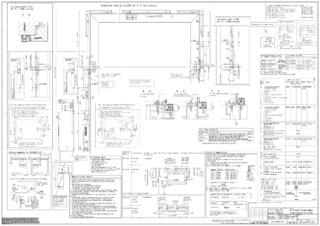

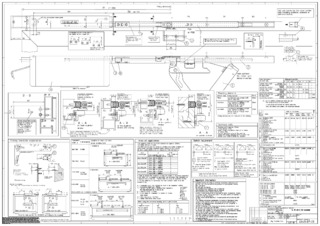

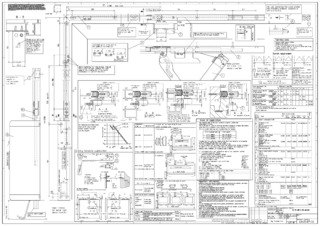

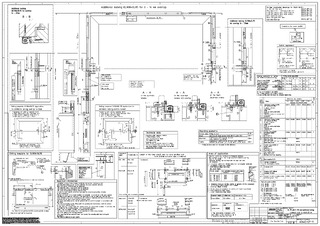

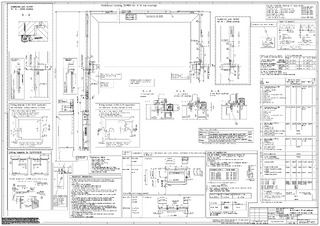

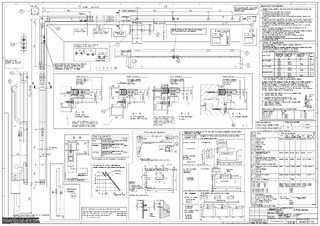

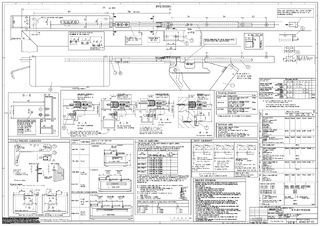

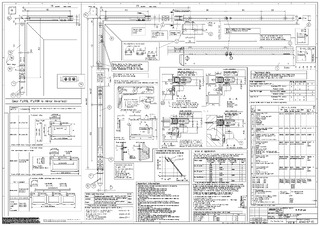

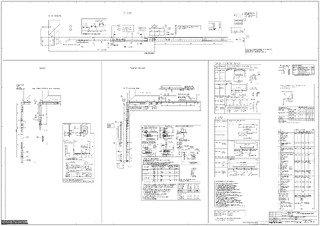

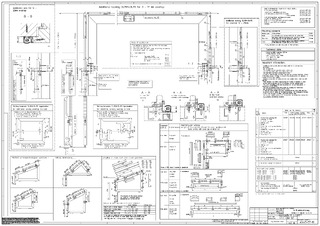

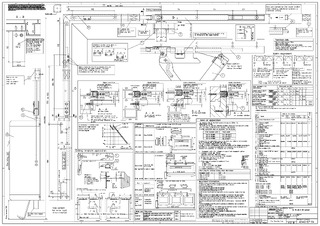

Installation drawing
Product data sheet
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
