OL 90 N
Scissors OL 90 N * Scissors OL 90 N with standard leaf bracket and unhinging inhibitor
- Achieves the full opening width of 170 mm for all leaf heights
- Suitable for leaf weights up to 80 kg
- Min. leaf height 250 mm
- Min. leaf width 380 mm
- Max. leaf width of 3600 mm with three scissors
- Unhinging inhibitor offers additional safety
Application Areas
- Inward-opening bottom-hung leaves
- For rectangular windows
- Installation on wooden (no Euro-groove), PVC or metal windows
- Suitable for overlap heights of 0-25 mm
- Flexible right/left use/operation
- Leaf and frame installation

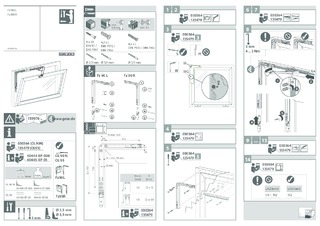

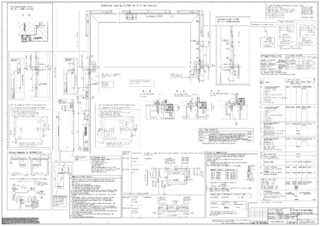

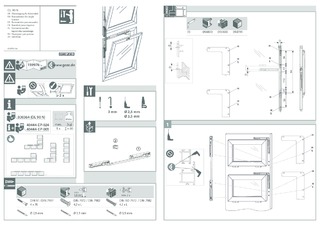

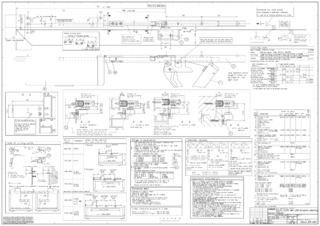

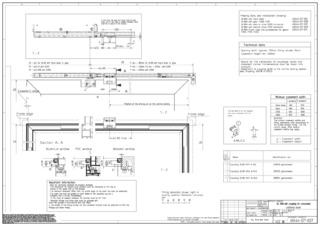

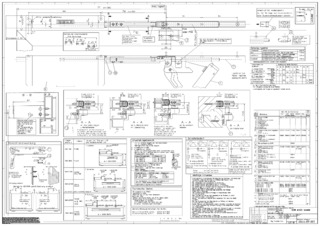

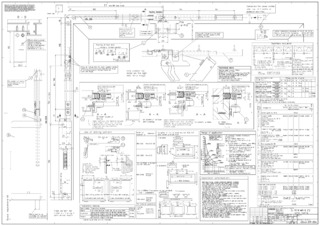

Downloads
GEZE OL 90 N scissors
LABELLING OBLIGATION:
© GEZE GmbH
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
